F5S
The F5S bookshelf speaker is part of Fyne
Audio’s enhanced F500S Series, featuring the
next evolution of IsoFlare point source driver
technology for superior clarity and dispersion.
Its neodymium HF magnet, vented rear chamber,
and magnesium HF diaphragm ensure reduced
resonance and extended high frequency
performance beyond 30kHz. The 5″ multi-fibre LF
cone with FyneFlute™ roll surround delivers
precise transient response and natural sound.
The integrated patented BassTrax™ Tractrix
Diffuser System guarantees an even 360 degree
bass distribution, minimising room placement
sensitivity. Additionally for personal
adjustment of the soundstage +/- 3dB (2.5 –
5.0kHz), the F5S comes with a rear facing

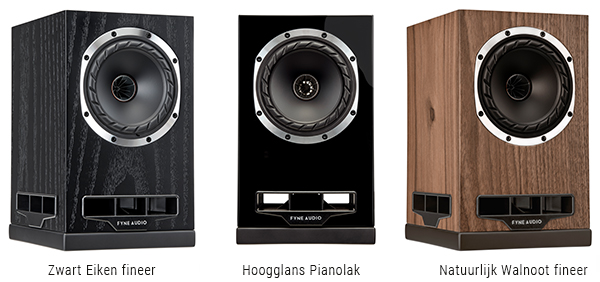

presence switch. Encased in high-rigidity MDF,
the F5S is finished in luxury Black Oak or
Natural Walnut real wood veneer or a sumptuous
Piano Gloss Black, perfect for any decor. The
Ideal for music and movie enthusiasts alike
seeking a natural immersive soundstage where
real-estate is at a premium.
Specifications
- System Type 2 way,
downwards firing port, with BassTraxTM Tractrix
diffuser
-
Recommended amplifier power (Watt RMS) 30 - 90
-
Continuous power handling (Watt RMS) 45
-
Sensitivity (2.83 Volt @ 1m) 87dB
-
Nominal impedance 8 Ohm
-
Frequency response (-6dB typical in room) 55Hz –
38kHz
-
Drive unit complement 1 x 125mm IsoFlareTM,
multi-fibre bass / mid with 19mm magnesium dome
compression tweeter
-
Crossover frequency 1.8kHz
-
Crossover type 2nd order low pass, 1st order
high pass
-
System adjustments Presence control +/- 3dB (2.5
– 5.0kHz)
-
Dimensions - HxWxD 285 x 174 x 249mm (11.2 x 6.9
x 9.8”)
-
Net Weight - Each 4.5kg (9.9lbs)
-
Finishes Black Oak, Natural Walnut, Piano Gloss
Black
-
S-Trax Position (from cabinet front edge) 32mm
(1.3")
|
