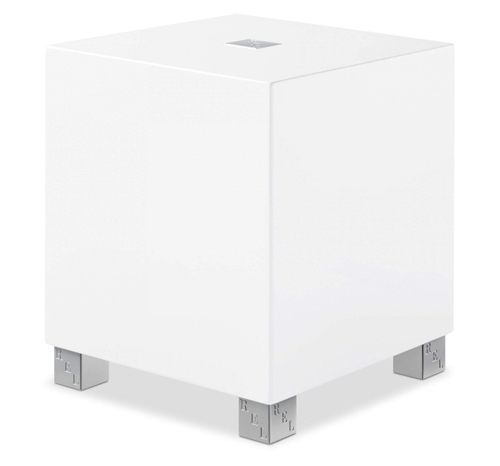

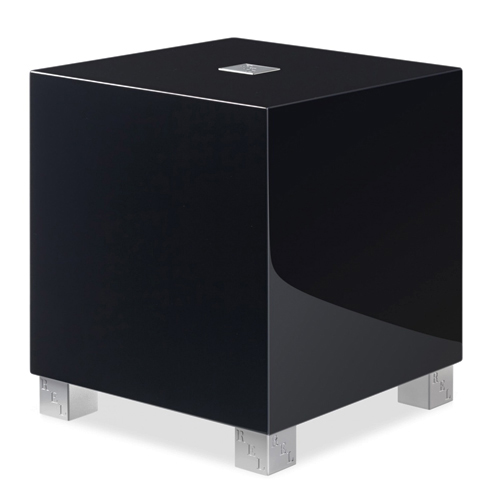

REL T5i Subwoofer

Ti Series
Deze serie van ultra compacte sub-bas systemen begint bij de T-Zero. De T-Zero is uitgevoerd met een langeslag woofer en een 100 Watt versterker. Dit compacte model is specifiek ontworpen voor gebruik in combinatie met compacte luidsprekers in kleinere ruimtes en maakt weergave tot 38Hz mogelijk. Voor grotere ruimtes bepalen meer kastinhoud, grotere woofers, aanvullende passieve radiators en meer versterkervermogen het onderscheid. De drie Ti modellen bieden een grotere kastinhoud , meer versterkervermogen en een groter conusoppervlak voor nog meer laagfundament (T5i tot 32Hz, T7i tot 30Hz en T9i tot 28Hz). Optioneel is voor draadloze aansluiting voor de Ti modellen een 16-bit digitale zender/ontvanger (Arrow™) leverbaar. Alle T modellen zijn voorzien van de REL’s unieke ABC afregeling en unieke Set-Safe overbelastingsbeveiliging. De kastafwerking is een 5 laags handopgebrachte en handgepolijste zwarte of witte hoogglans lak.

Specifications
- Type: Closed Box, down-firing active woofer
- Active Drive Unit: 8in., 200 mm long-throw, inverted dust cap, steel chassis
- Lower Frequency Response: 32 Hz at -6 dB in room

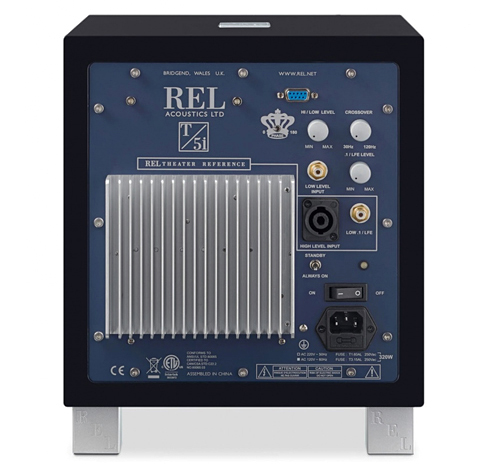

- Input Connectors: Hi Level Neutrik Speakon, Lo Level single phono, LFE phono
- Input Impedance: High Level: 150k, Low Level: 10k, .1/LFE: 10k ohms
- Gain Control Range: 80 dB
- Power Output: 125 Watts (RMS)
- Phase Switch: Yes, 0 or 180 degrees
- Amplifier Type: Class AB
- Output Short: Yes
- Mains Input Voltage: 220-240 volts, 110-120 volts for certain markets
- Fuses: 1.6 Amp semi delay 230 volts operation, 3.15 Amp semi delay 115 volts operation
- Dimensions (WHD): 10.5 x 12.5 x 12.7 in., (267 x 317 x 322 mm)
- Including Feet and Rear Panel Controls
- Add 1.75 in (44.5 mm) in depth when using Hi
- Level connector
- Net Weight: 26.5 lbs. (12 kg)
- Finish: Gloss Piano Black or White Lacquer

Protection System
- Fully Electronic SET-SAFE: Yes
- D.C. Fault: Yes

Supplied Accessories
- Mains Lead: Yes
- Neutrik Speakon Interconnect: Yes (10 Meters Nominal)
- Users Manual: Yes

Brochure

Manual

Purity Reimagined The Stunningly Simple T/5i

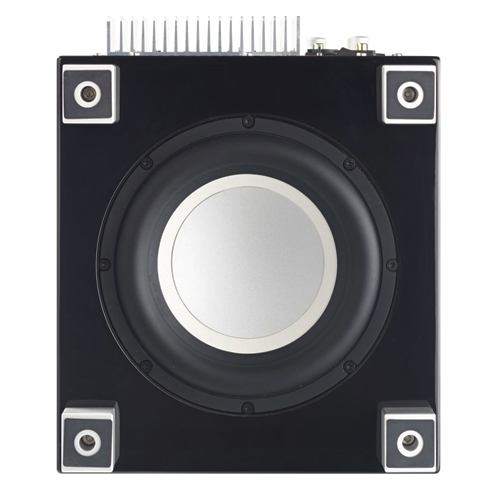

Simplify, Then Add Lightness: Simplicity is its own reward and T/5i reduces the classic cubic sub to its bare essence. A single, high quality AlloyFibre™ composite driver and down firing orientation produces maximum coupling with the floor and eliminates the need for a grille. T/5i is the purest expression of REL. We began by updating our classic 8” bass engine to reduce mass, while greatly increasing stiffness. This improvement led to upgrading cabinet dimensions and wall thickness to better control the deep bass. Additional upgrades extended even into the design of our feet, resulting in greater speed and solidity to the presentation of sound.

Faster & Deeper A 360º Update
We began by updating our classic 8” bass engine to reduce mass, while greatly increasing stiffness. This improvement led to upgrading cabinet dimensions and wall thickness to better control the deep bass. Additional upgrades extended even into the design of our feet, resulting in greater speed and solidity to the presentation of sound.

Proven Power RELs Reliable Brains And Brawn
REL’s electronics are the brains and power behind our success. Serie Ti uses the same Class A/B power amplifier sections with large, high current power supplies, precision-wound transformers and an amazing reliability record that has powered some 100,000 RELs.

Zero Compression Wireless Introducing Arrow™
Arrow™ is REL’s latest generation of zero compression wireless. Super fast delivery of both High Level Bass and .1/ LFE ensures the rich, natural warmth that only RELs can deliver. With a throw distance of some 45’(13.7M) Arrow permits flexible placement without sacrificing sound quality.
